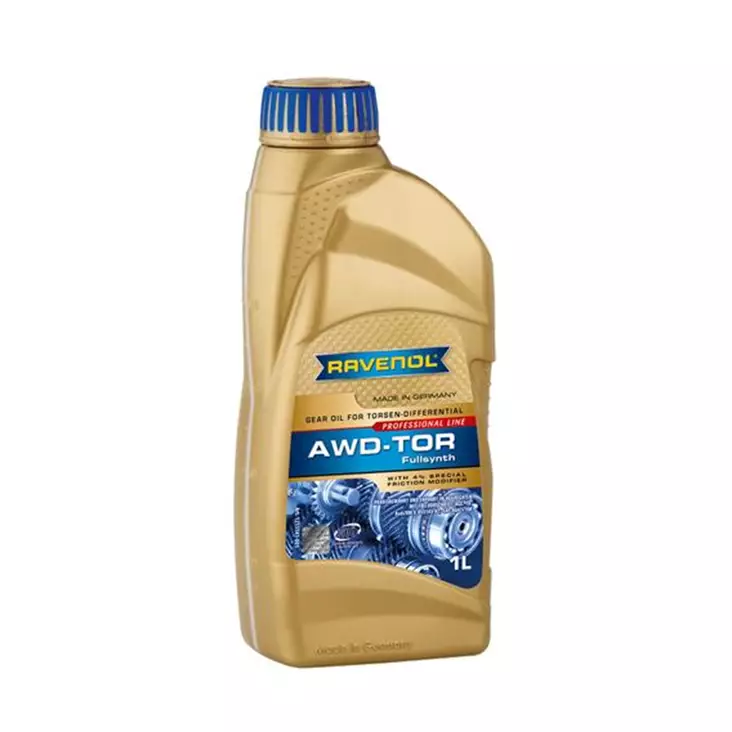

Transmission oil AWD-TOR Ravenol 1L
- Product Code: 1211141-001
Oil type: Full synthetic
Recommendation: SAF-AG4 + FM, VW/Audi G 055 145 A2
Application: Passenger car
RAVENOL AWD-TOR FLUID is a high quality full synthetic formulation based on polyalphaolefins (PAO) with a special additive and inhibition to ensure proper functioning of the gearbox.
RAVENOL AWD-TOR FLUID is a special transmission oil for transfer cases of four-wheel drive systems from Torsen type of VW and AUDI. To improve the operating characteristics of intermittent loads, 4% of a particular friction modifier is used in the recipe RAVENOL AWD-TOR FLUID guarantees low wear and, thanks to its excellent properties, ensures a long service life of the gearbox.
Application Note
RAVENOL AWD-TOR FLUID is suitable for use in transfer cases of Torsen type four-wheel drive systems from VW, AUDI and other vehicle manufacturers.
RAVENOL AWD-TOR FLUID is excellently suited for use in normal road traffic as well as in motorsports.Observe manufacturer's instructions.
Characteristics
- An addition of 4% of a special friction modifier
- Excellent flowability at low temperatures
- Low wear
- High, stable viscosity index
- Reliable protection against wear, corrosion and foaming
- Excellent viscosity-temperature behavior
- Neutral behavior towards sealing materials
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Colour | braun | VISUELL | |
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
| Viscosity at 100 °C | mm²/s | 16,7 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 107,9 | DIN 51562-1 |
| Viscosity Index VI | 168 | DIN ISO 2909 | |
| VKA Four Ball Test (Wear) | mm | 0,71 | DIN 51350-3 |
| VKA Four Ball Test (EP Extreme Pressure) | N | 3600 / 3800 | DIN 51350-3 |
| Brookfield Viscosity at -40 °C | mPa*s | 48.700 | ASTM D2983 |
| Copper Strip Test at 150 °C | 1a | ASTM D130 | |
| Density at 20 °C | kg/m³ | 864,0 | EN ISO 12185 |
| Pourpoint | °C | -54 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
