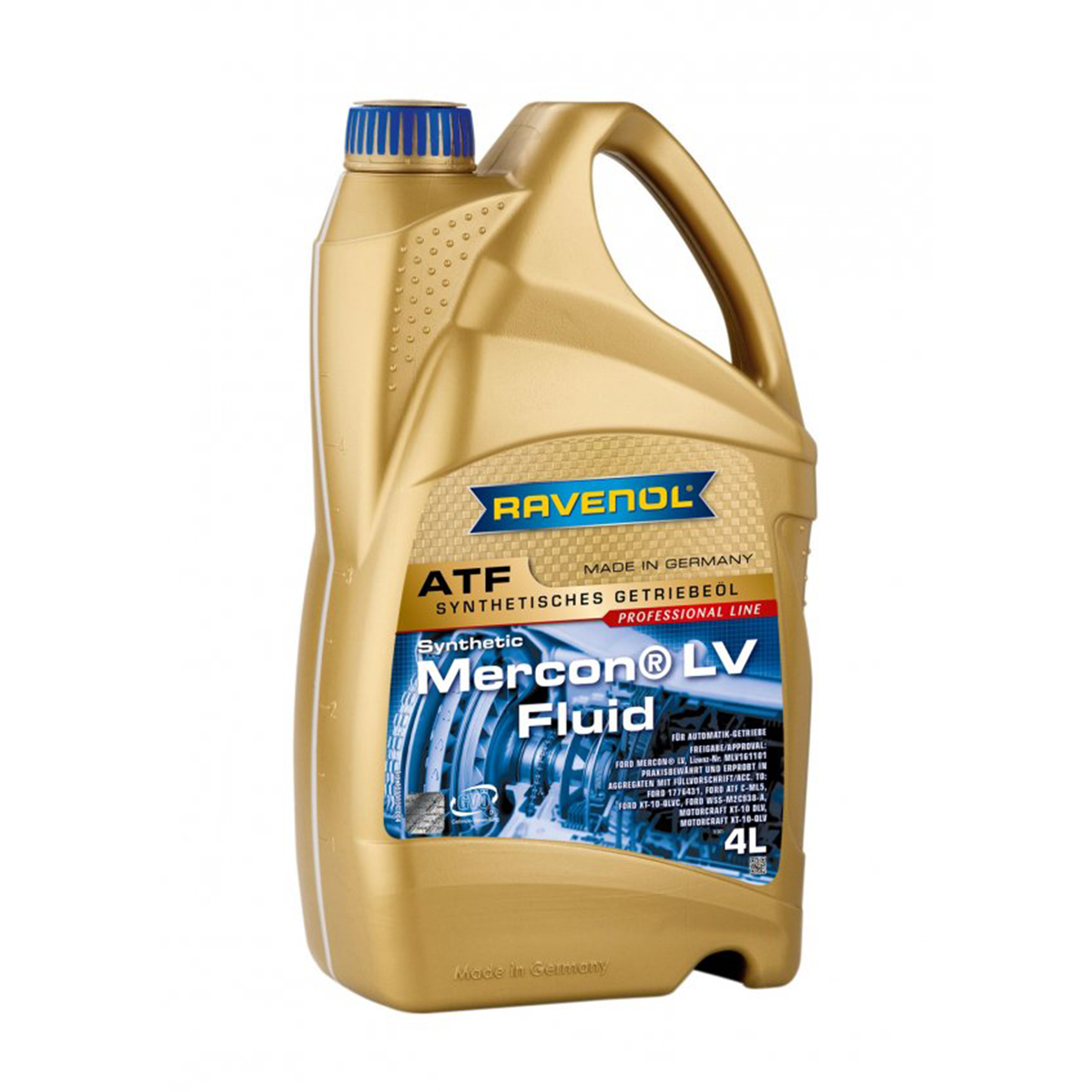

Automatic transmission oil Ravenol ATF Mercon LV Fluid 4L
- Product Code: 1211137-004
Approvals: FORD MERCON® LV (Lizenz-Nr. MLV161101)
Recommendation: Ford ATF C-ML5, Ford Motorcraft XT-10-DLV, Ford Motorcraft XT-10-QLV, Ford WSS-M2C938-A, Ford 1776431, Ford XT-10-QLVC
Application: Passenger car
RAVENOL ATF MERCON® LV Fluid is synthetic ATF Automatic Transmission Fluid, which was specially developed for automatic transmission of Ford. The special formulation ensures a long service life of the lubricant and provides excellent protection against abrasion and wear.
RAVENOL ATF MERCON® LV Fluid meets the relevant requirements of the gear oil specifications from Ford.
Application Note
RAVENOL ATF MERCON® LV Fluid is used when the automatic transmission oil specification MERCON® LV is required.
RAVENOL ATF MERCON® LV Fluid meets relevant requirements of the gear oil specifications from Ford for automatic transmission TorqShift 6R140 (Powerstroke from 2010), TorqShift 5R110 (Ford Super Duty 2003-2009), 4R75W / E (from 2009), 6R80, 4F27E, 6F50N / 55N (from 2010), and 6F35N HF35 hybrid.
Characteristics
- Very good lubricity also by low temperatures
- High, stable viscosity index
- Very good oxidation stability
- Excellent wear, corrosion and foaming protection
- Excellent friction constant
- High thermal and oxidative stability
- Excellent cooling capacity
- Improved shear stability ´
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Colour | rot | VISUELL | |
| Foaming tendency (Seq. I, II, III) | min. | 0/0, 30/0, 0/0 | ASTM D892 |
| Viscosity at 100 °C | mm²/s | 5,9 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 29,2 | DIN 51562-1 |
| Viscosity Index VI | 150 | DIN ISO 2909 | |
| Brookfield Viscosity at -40 °C | mPa*s | 9.960 | ASTM D2983 |
| Copper Strip Test at 121 °C | 1b | ASTM D130 | |
| Density at 20 °C | kg/m³ | 838,0 | EN ISO 12185 |
| Flashpoint | °C | 224 | DIN EN ISO 2592 |
| Pourpoint | °C | -51 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
