Audi S-Tronic Mechatronic and Clutch Problems

The Audi 0B5 DL501 is a 7-speed dual-clutch transmission (S-tronic) used in longitudinal-engine models such as the Audi A4, Audi A5, Audi A6, Audi A7, Audi Q5, Audi S4, Audi S5 and Audi RS5, as well as the Porsche Macan.

This transmission is known for a common fault related to the mechatronic valve body and clutch system. The failure typically progresses as follows:

  1. A solenoid wears out and begins to leak internally.
  2. The clutch hydraulic pressure can no longer be regulated correctly.
  3. The clutch remains partially engaged or slips continuously.
  4. The clutch pack overheats and wears prematurely.

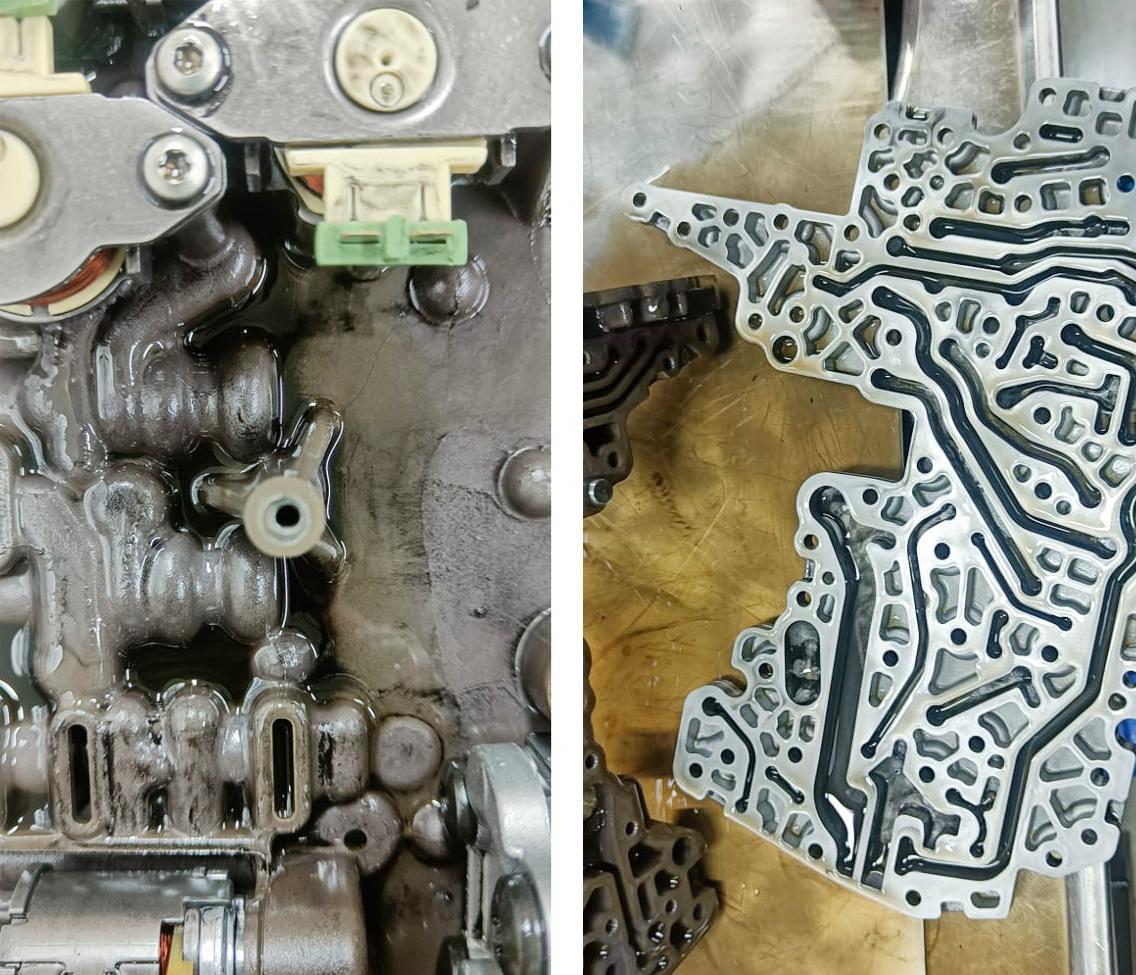

  5. Friction material and metal debris from the clutch circulate with the transmission fluid back into the valve body, clogging additional solenoids.
  6. The mechatronic unit suffers further damage, and even a new valve body may fail quickly if the clutch is not repaired at the same time.

For this reason, repairing only the valve body is often not sufficient, even if the original fault code points only to the valve body.


Common Symptoms and Fault Codes

The symptoms usually begin mildly and worsen over time. The fault may present itself in the following ways:

  • The vehicle tends to creep forward while stopped
  • Jerking or shuddering when moving off
  • Transmission slipping during acceleration
  • Delayed gear engagement
  • Reverse gear disappears
  • Transmission enters limp mode
  • A transmission malfunction warning appears in the instrument cluster

The following fault codes are commonly associated with mechatronic pressure issues or clutch damage: P17D800 / P179D00 / P174000 / P174A / P174B / P174C / P174E / P174F / P179C

some cases, Audi recommends installing the BorgWarner mechatronic repair kit (0B5398048D) In practice, however, repairing only the valve body may not resolve the issue if the clutch has already been damaged. In addition, the transmission must be thoroughly cleaned and the oil and filters replaced.




Why Should Both the Mechatronic Unit and Clutch Be Repaired Together?

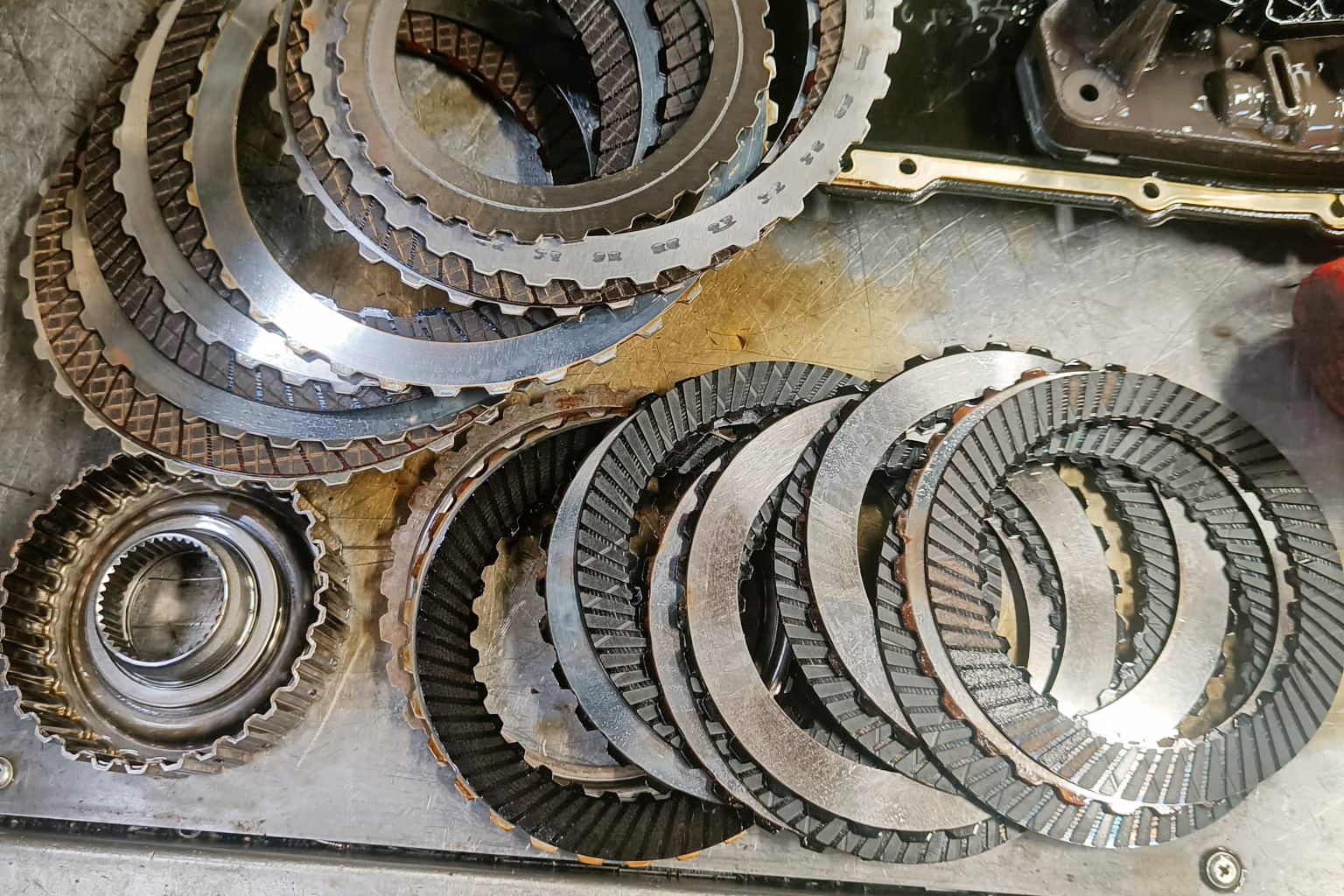

When the clutch has been slipping for an extended period, friction material and metal particles accumulate in the transmission oil. These contaminants travel into the valve body and can damage new solenoids and hydraulic channels.

For this reason, we always recommend inspecting the clutch condition whenever a mechatronic fault is diagnosed. If the clutch is worn or has been slipping, the safest and most durable repair consists of:

  • Rebuilding the valve body or replacing the complete mechatronic unit
  • Rebuilding or replacing the clutch
  • Replacing the transmission oil and filters
  • Thoroughly cleaning the transmission

This helps prevent a situation where a newly repaired mechatronic unit fails due to pre-existing clutch damage.


AutoGear Repair Service

At our workshop in Forssa Finland, we are repairing Audi 0B5 DL501 transmission clutches and valve bodies. We provide a 12-month warranty on parts when both the mechatronic unit and clutch are replaced or rebuilt at the same time.

We also offer new genuine clutches and mechatronic units, as well as complete transmission rebuild services with fast turnaround times. Contact us for a quote!
